PNEUMATIC WINCH
CNM08
Introduction

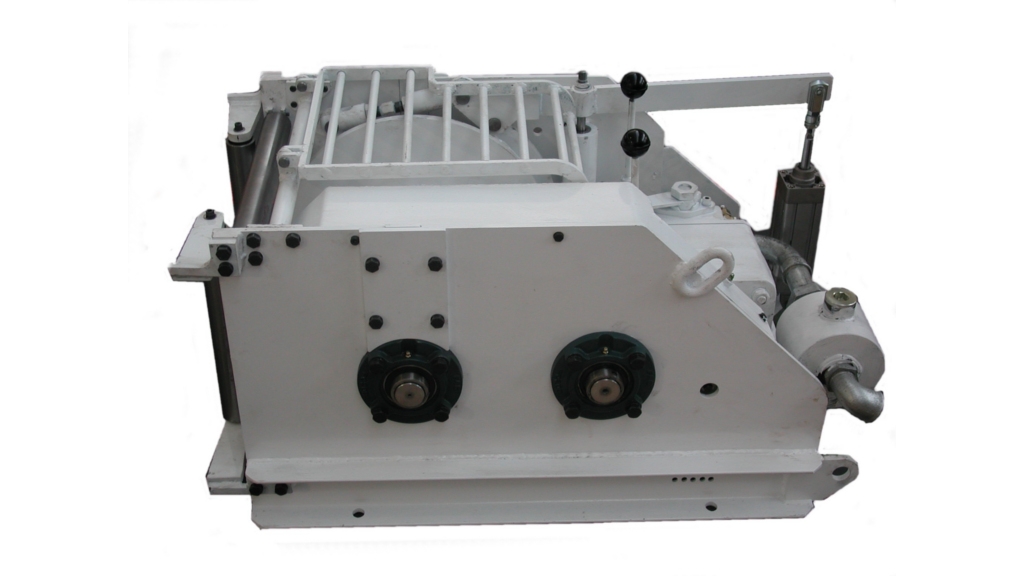

The 8 HP pneumatic winch CNM08 is conceived as a machine designed to move loads in horizontal or low slope galleries, (not self-propelled slopes), by pulling wire rope wound on a drum.
The whole set is supported on a rigid frame built in electro-welded steel plate. On the base of the frame there are 4 holes with a diameter of 20 mm distributed in a rectangular floor of 580 x 570 mm that allow a solid anchorage by means of fixing bolts. It is also equipped with four suspension rings to facilitate and guarantee safe transport manoeuvres.
On the cable exit side it incorporates a module with four horizontal and vertical rollers for cable guidance, which facilitate the winding of the cable on the drum.
Characteristics
-
Pulling force...................................................................................................................... 1000 daN
Maximum speed in 1st layer............................................................................................... 0,5 m/seg
Power ..................................................................................................................................... 8 CV
Air supply pressure.................................................................................................................. 6 bar
-
Free air consumption.......................................................................................................... 3 m3/min
Cable diameter to be used..................................................................................................... 10 mm
Ability to rewind................................................................................................................... 280 mts
Weight without cable............................................................................................................. 370 Kg
Sound level............................................................................................................................ 95 Db
