SHEARER ON FLOOR
TEMP H
Introduction

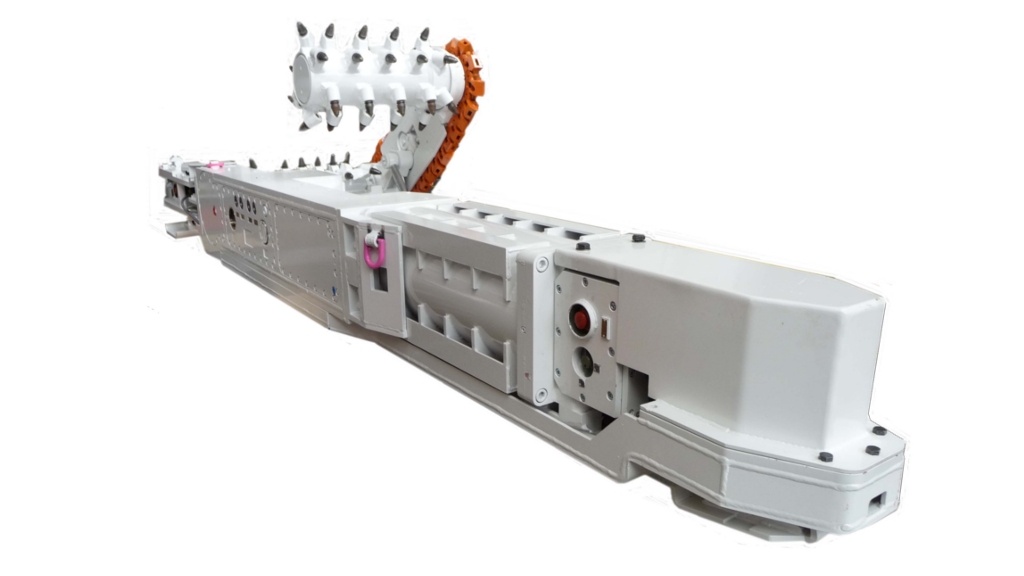

TEMP-H Coal Shearer on floor is a machine with 80 kW power and 4.500 Kg. weight equipped with two cutting drums suitable for working in thin inclined coal seams.
The front drum cut on floor and has no height regulation and the rear drum can regulate the cutting height between 650 and 1200 mm.
Movement of the Shearer along the longwall face is produced through a safety and dragging winch placed in the mine face heading which drags the machine between two cables one of which is used for traction, the other as a safety cable. These cables are fixed to the machine with thimble assembled in the head.
Click on image to enlarge
Characteristics
- Seam thickness............................................................................................................. 600 – 1.200 mm
- Advance per work cycle............................................................................................................. 900 mm
- Coal seam inclination................................................................................................................ 30 – 85º
- Gradient angle on the front........................................................................................................ 10 – 40º
Download product full description PDF
