PNEUMATIC LOADER
EIMCO 21(REBUILT)
Introduction

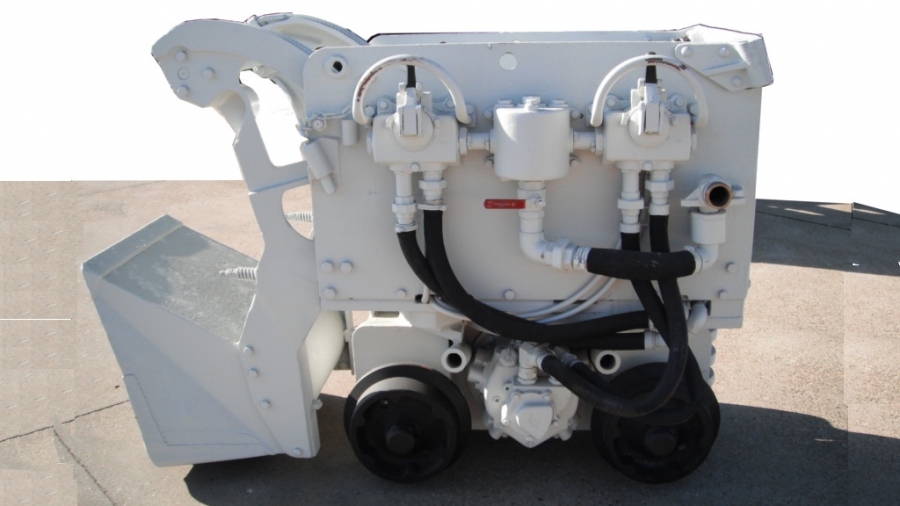

Pneumatic track loader with a loading capacity of 1.05 to 1.50 m³ per minute for medium section galleries. It has 2 engines of 22 hp for translation and turning. Automatic gravity centering.
Pulsar imagen para ampliar
Characteristics
| Dim. | Especificación | Unidades | EIMCO 21 |
| A | Total frame width | mm | 860 |
| Total driving width with standing platform | mm | 1.240 | |
| B | Total frame length | mm | 1.270 |
| C | Total length of lowered bucket | mm | 2.100 - 2.290 |
| D | Total height with lowered bucket | mm | 1.435 - 1.550 |
| E |
Maximum bucket height Depends on the wagons to be loaded |
mm | 2.270 - 2.510 |
| F | Bucket discharge height | mm | 2.270 - 2.510 |
| G | Discharge distance behind loader | mm | 440 - 700 |
| H | Lateral range | mm | 2.300 - 2.490 |
| Lateral excavation range | mm | 2.490 - 2.900 | |
| Working pressure | Kg/cm² | 4 - 7 | |
| Air supply hose diameter | mm | 30 - 40 | |
| Complete loading cycle | sg | 7 | |
| Bucket capacity | m³ | 0.3 | |
| Load capacity, average volume per minute | m³/min | 1,00 - 1,50 | |
| Capacity of the loaded wagon | m³ | 0,60 - 3,00 | |
| Total weight of the loader | Kg | 3.240 | |
| Weight of the heaviest part | Kg | 554 | |
| Air Consumption | m³/min | 8 - 9 | |
| Track gauge | mm | 600 - 1.219 |
