PNEUMATIC LOADER
ATLAS LM36 (REBUILT)
Introduction

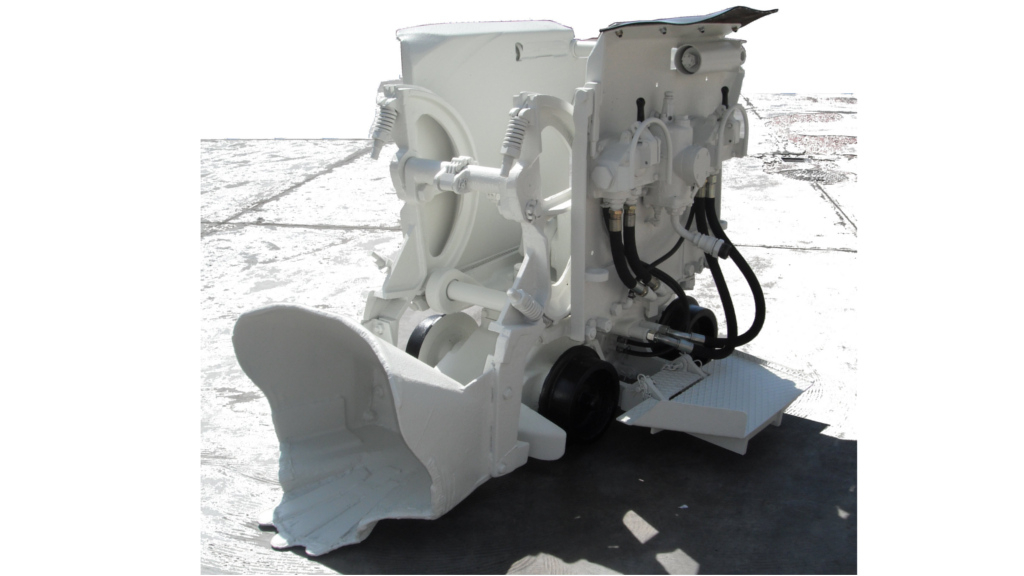

Pneumatic track loader with 0,50 to 1,00 m³ per minute load capacity. It is intended for use in small section galleries. It has 2 engines of 10 and 12 hp for translation and turning. Automatic centering by gravity.
Click image to enlarge
Characteristics
| Dim. | Especificación | Unidades | ATLAS LM36 |
| A | Total frame width | mm | |
| Total driving width with standing platform | mm | 1.310 | |
| B | Total frame length | mm | 1.350 |
| C | Total length of lowered bucket | mm | 2.000 |
| D | Total height with lowered bucket | mm | 1.400 |
| E |
Maximum bucket height Depends on the wagons to be loaded |
mm | 2.010 |
| F | Bucket discharge height | mm | 1.150 |
| G | Discharge distance behind loader | mm | 350 |
| H | Lateral range | mm | 2.200 |
| Working pressure | Kg/cm² | 4,5 - 7 | |
| Air supply hose diameter | inch | 1 | |
| Complete loading cycle | sg | ||
| Bucket capacity | m³ | 0,14 | |
| Load capacity, average volume per minute | m³/min | 0,50 - 1,00 | |
| Engine power, Traction/Loading | hp | 10/12 | |
| Total weight of the loader | Kg | 1.800 | |
| Weight of the heaviest part | |||
| Air Consumption | |||
| Track gauge | mm | 600 |
