ELECTROHYDRAULIC WINCH PULL+RETENTION
CEHTR30

Introduction

The CEHTR30 PULL & RETENTION winch is specifically designed to work on long pits with wall shears, as a pull and safety winch, located in the pit head gallery. This winch pulls the machine by means of two cables, one of which is used for traction, and the other as a safety cable.

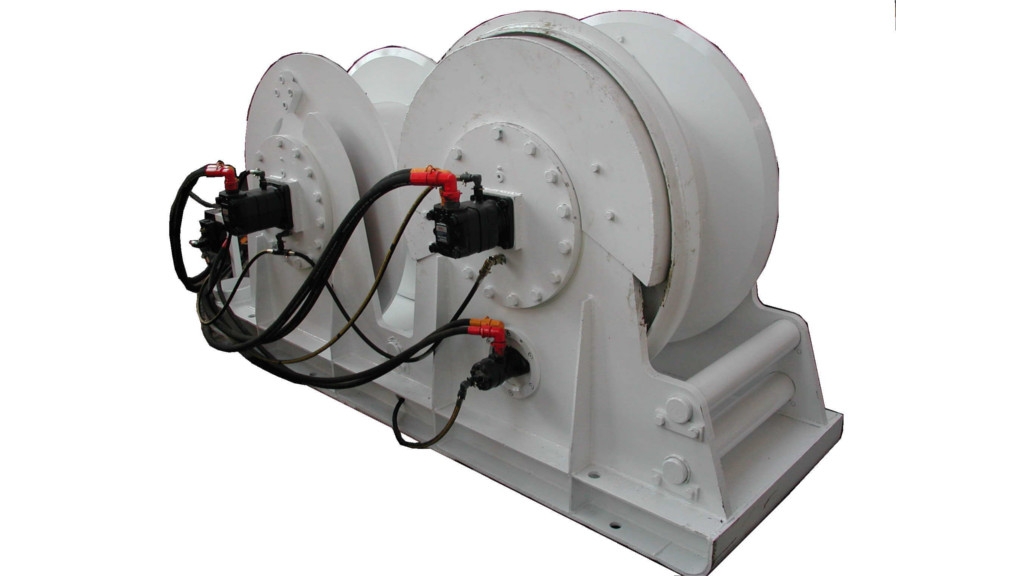

Click on the picture to enlarge

Características

Values in the intermediate layer of the winding

• Traction force on the working drum................................ 100-140 KN.

• Traction force on the safety drum ...................................................50-90 KN.

• Retention force on each drum...........................................  0-140 KN.

• Maximum speed with shearer working............................ 5,85 m/min.

• Cable diameter............................................................... 25/28/30  mm.

• Drum diameter............................................................... 660/1100 mm.

• Winding capacity on each drum........................................... 315 mts.

• Dimensions length/width/height:...........................  3100/940/1375 mm.

• Electric motor power:  ............................................................................... 30 Kw.

• Supply voltage:.................................................................. 3 x 500 V

• Maximum working pressure ................................................................ 160 bar
