ELECTRIC WINCH
PROCE0912

Introduction

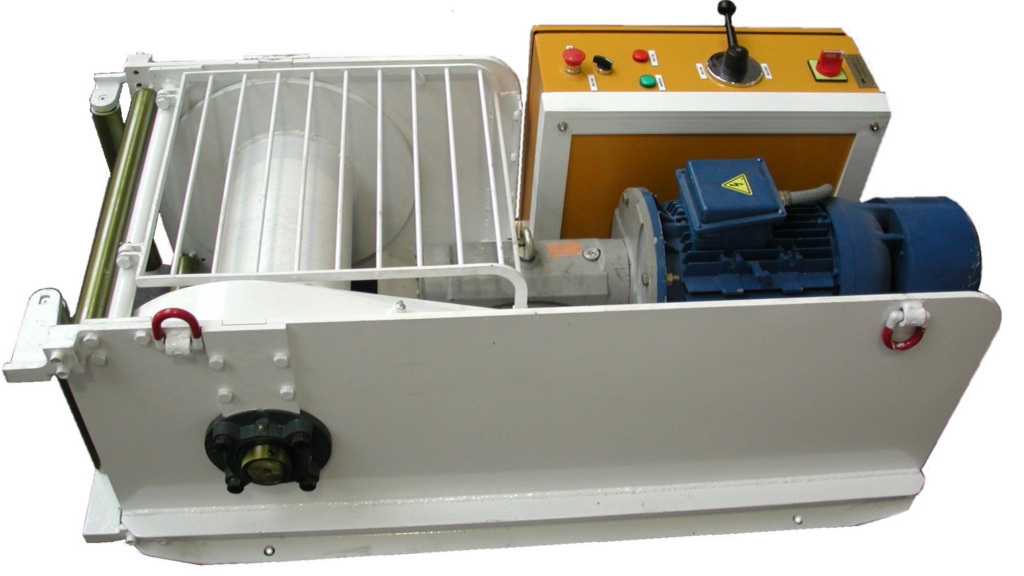

The PROCE0912 electric winch is designed as a machine for lifting and lowering loads in galleries, both horizontal and inclined, by means of pulling wire rope wound on a drum, in areas classified as zero level, without requiring protection against potentially explosive atmospheres.

The drum is driven by a motor reducer group, fed by a frequency converter at a three-phase voltage of 380 or 500 V, so that by steering with a Joy-Stic it is possible to obtain a complete regulation of speed and torque in both directions of rotation of the drum.

It is equipped with a "slack rope" protection function so that the rotation of the drum in the unwinding direction requires a certain amount of traction on the rope.

Therefore, if you stop pulling to unwrap the cable, the drum automatically stops turning, thus avoiding the "slack rope" condition.

Characteristics

• Power of electric motor:............................................................................................................. 9,2 Kw.

  Nominal torque of the motor:..................................................................................................... 61 N.m

  Nominal torque of the brake:.................................................................................................... 100 N.m

  Supply voltage: .......................................................................................................... 380 ó a 525 V.ac

  Winding core diameter:............................................................................................................ 245 mm.

  Outside diameter of ferrule:...................................................................................................... 450 mm

  Interior width:............................................................................................................................ 495 mm.

  Maximum capacity for cable with 12 mm with10 layers: ....................................................... 460 mts.

  Maximum capacity for cable with 14 mm with 8 layers: ........................................................ 360 mts.

  Effort of maximum shot on the 1^st layer:.............................................................................. 1850 daN.

  Maximum shooting effort in the layer 10^th:........................................................................... 1100 daN:

  Capacity of the brake on the 1^st layer winding:.................................................................... 7.000 daN.

  Capacity of the brake on the 10^th layer winding:................................................................... 4.000 daN

  Maximum speed on the 1^st layer:........................................................................................ 0,65 m/seg.

  Maximum speed on the 10^th layer :...................................................................................... 1,1 m/seg.
